Application:

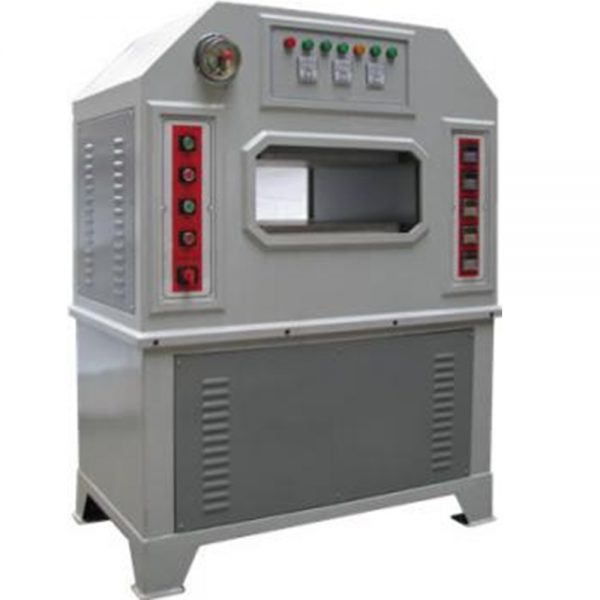

Automatic vulcanizer for curing silicone or organic rubber moulds.
Features:
- Automatic control.
- Automatic pressure regulation.
- Automatic temperature control.
- Curing cycle timer.
- Automatic forced cooling.
- Digital display temperature and time.
- Maximum pressure protection.
- Environmental and energy saving insulation design to provide a better temperature uniformity and energy cost saving.
| Model | APM12 | APM14 | APM16 | APM18 | APM20 |
| Mould diameter max | 12” | 14” | 16” | 18” | 20” |
| Mould thickness, mm, max | 150 | ||||
| Heating, kW | 6 | 6 | 9.6 | 10.8 | 12 |
| Motor, kW | 1.5 | ||||
| Pressure, T, max | 32 | 32 | 50 | 50 | 50 |
